Pure Ice

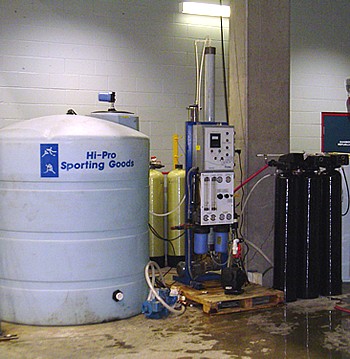

Demineralized Flood Water System
The process of removing minerals, salts and dissolved solids from the flood water is known as demineralization.

Essentially, for ice making, demineralization can be accomplished either by deionization or reverse osmosis.
cont...

Demineralized Flood Water System

Deionization (a.k.a. DI) is a chemical process in which the dissolved solids are exchanged for hydrogen (H+) and hydroxyl (OH-) ions to form pure water (H20). This process was used in the past to produce water for ice making but has seen a decline in usage and is even being removed from facilities due to the inherent problems of : chemical (hydrochloric acid, caustic soda) storage, handling and disposal. In addition, high operating costs; corrosion to pipes, equipment and ice resurfacing tanks; workplace hazardous materials legislation; code requirements (spill curbs, eye baths, etc.) and wide swings in pH and water quality have caused many owners, operators and designers to look for a better means to produce demineralization flood water for their facilities.

Reverse Osmosis (i.e.: Pure Ice) is that better way. The basic reverse osmosis (a.k.a. RO) concept is quite simple. The supply water is forced through a semipermeable membrane, impurities filtered out and pure water produced. Reverse osmosis will remove over 95% of the impurities from the flood water without using dangerous chemicals and creating problems with pipes, equipment and water quality. Since RO water maintains some of its natural buffering ability, it is far less aggressive to pipes, equipment, concrete and paint than water produced through deionization. RO water also helps to reduce scale formation in the flood water heater.

Ice rink designers can take advantage of this technology to reduce the refrigeration load for the ice rink and the required plant capacity (Tons, kW). Operators will notice decreased refrigeration and hot water energy usage and improved ice conditions.

Ice Quality
As a result of removing the impurities from the flood water (ASHRAE), the Pure Ice system improves the quality of the ice:
  • Hockey players will enjoy the harder, faster ice.
  • Skaters will be pleasantly surprised with the improved ice texture and the way figures show up more prominently.
  • Curlers will find that Pure Ice produces a keener ice surface and a more durable pebble.
  • Rink managers will be pleased by the fact paint, lines, circles, paper and logos are brighter and more visible due to the clarity of the ice.
  • Rink operators will find that there is less snow to remove and maintenance times are reduced.
